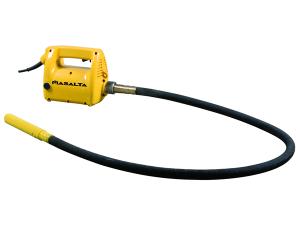

The MVK portable concrete vibrator is contained within a strong water-proof plastic housing with double insulation. The oversized motor is designed with reinforced cable to prevent bending and deformation. Faster consolidation can be achieved with high cycle frequency and a powerful centrifugal force. Lightweight and compact, the MVK portable concrete vibrator provides mobility and maneuverability in situations with limited access.
Technical Specifications
Model | MVK28 | MVK32 | MVK38 | MVK45 | MVK50 |
Dia x length mm | 28x210 | 32x250 | 38x250 | 45x430 | 50x450 |
Weight kg | 0.60 | 0.95 | 1.55 | 3.80 | 1.60 |
Centrifugal force kN |
0.7 | 0.8 | 1 | 1.6 | 2.1 |
Vibrator Amplitude mm |
1 | 1 | 1.2 | 1.3 | 1.5 |
Frequency vpm | 12000-14000 | ||||
Revolution | |||||
Casing Assembly Length |
Standard 3m,1m and 2m are available |
Masalta is an experienced portable concrete vibrator manufacturer and supplier in China. We offer a variety of products, including power trowel, double drum road roller, low emission tamping rammer, floor saw, and much more.
