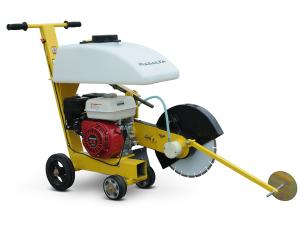

The MFS14 floor saw is a modified version of our popular MF14 series. The machine incorporates a swivel cutting system that intelligently avoids engine displacement during cutting operations. A cutting depth of up to 185mm can be achieved with the blade-Ø 350 mm. The compact dimensions of the machine allow it to be deployed in narrow or restricted areas. A large and transparent water tank enables prolonged and continuous operation; the water level can be easily gauged at a glance. The lightweight frame of the machine body allows it to be easily transported between worksites. The blade can be replaced by lifting the front hinged blade guard. Four running wheels and a firm handle grants the machine stability while operating on uneven road surfaces. The MFS14 floor saw is available with either a gasoline or diesel motor.
Technical Specifications
| Model | MFS14-1 | MFS14-3 | MFS14-4 |
| Engine | Air-cooled, 4-cycle, single cylinder | ||
| Engine Type | Diesel, Kipor 170 | Petrol, Robin EX17 | Petrol, Honda GX160 |
| Power kw (hp) | 3.1 (4.2) | 4.2 (5.7) | 4.08(5.5) |
| Operation Mass kg (lbs) | 83 (183) | 70 (154) | 70 (154) |
| Max. Cutting Depth cm | 18.5(7.2) | ||
| Blade Size cm (in) | 30-35(12-14) | ||
| Depth Adjustment | Handle Rotation | ||
| Driving | Manual Push | ||
| Water Tank Capacity L | 28 | ||
| Dimension cm (in) | 105X48X91(41X19X36) | ||
Masalta is an experienced floor saw manufacturer and supplier based in China. We also provide portable concrete vibrator, power trowel, concrete hand floats, hydraulic reversible compactor, and more.
